Domestic Heatpump

Available Range

  • 300 L
  • 500 L
  • 1000 L
  • Corrosion Resistance
  • High Efficient Compressor
  • Intelligent Control Electric Expansion Valve

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum. It is a long established fact that a reader will be distracted by the readable content of a page when looking at its layout. The point of using Lorem Ipsum is that it has a more-or-less normal distribution of letters, as opposed to using ‘Content here, content here’, making it look like readable English. Many desktop publishing packages and web page editors now use Lorem Ipsum as their default model text, and a search for ‘lorem ipsum’ will uncover many web sites still in their infancy.

ModelHXHP-R-300(4KW)HXHP-R-500(7.2KW)HXHP-R-1000(10KW)
Nominal capacity300 Liter500 Liter500 Liter x 2Nos.
Outer diameter650 mm710 mm710 mm x 2Nos.
Weight (when empty)HP Unit 52kg, Tank 85kgHP Unit 55kg, Tank 110kgHP Unit 62kg, Tank 110kg x 2Nos.
Weight (filled)385kg610kg610kg x 2Nos.
Tank Height1509mm1918mm1918mm
Heatpump Size930L x 280D x 550H mm930L x 280D x 550H mm965L x 375D x 650H mm
Inner Tank materialAmerican Ferro Glass LinedAmerican Ferro Glass LinedAmerican Ferro Glass Lined
Operating Air temperature range (HP Mode)-7˚C to 43˚C-7˚C to 43˚C-7˚C to 43˚C
Maximum pressure8 bar8 bar8 bar
Max. Hot water temperature (HP + Backup Heater)65˚C65˚C65˚C
Electrical/Power Specifications
Rated Input – ECO mode1.05kW1.88kW2.85kW
Heating Output – ECO mode4kW7.2kW10kW
Electrical backup3kW3kW3kW
Rated Input – HP + backup4.05kW4.88kW5.85kW
Heating Output HP + backup7kW10.2kW13kW
Running Current (including backup heater)15Amps26Amps30Amps
Voltage and Frequency230V / 50Hz230V / 50Hz230V / 50Hz
Others
Refrigerant typeR410A / 600gR410A / 800gR410A / 1300g
Sound power level<55dB(A)<55dB(A)<55dB(A)

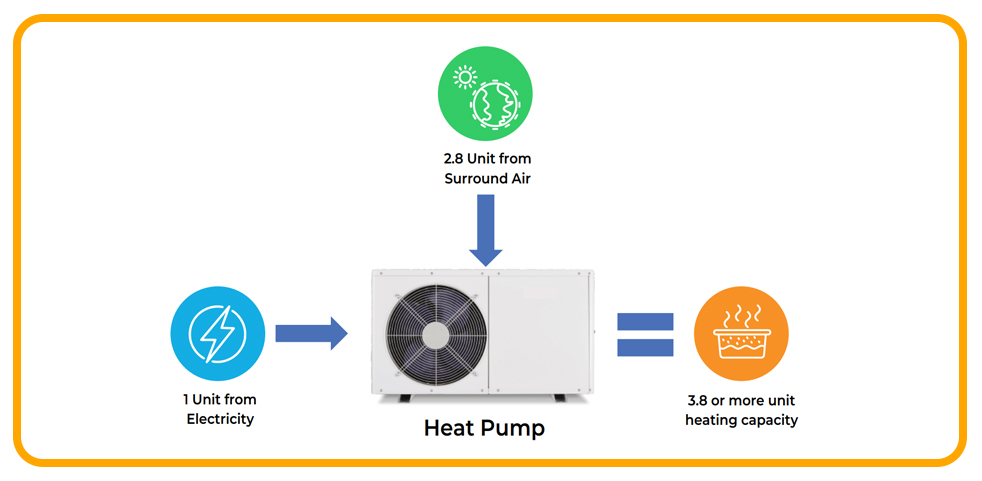

Coefficient of performance (COP)3.823.853.81
Hot water generation per hour HP Mode (35˚C delta)98 LPH176 LPH245 LPH
IP RatingIPX4IPX4IPX4
Water inlet / Outlet sizeG 3/4”G 3/4”G 3/4”

*Test Condition : Ambient Temp. : 15˚C | Cold Water Inlet Temp. : 20˚C | Hot Water Temp. : 55˚C

Water Cycle

Explore the cutting-edge technology behind the HEATX Monoblock Heat Pump, designed to provide superior energy efficiency and performance for your hot water needs.
